2016 MONACO
DYNASTY
With the all-new 2016 Dynasty, Monaco returns to its legacy of industry-leading power and luxury. Featuring the all-new Roadmaster chassis with a 600 hp, big-bore Cummins® engines, the Dynasty provides you with ultimate power along your journeys, putting you in command of the road ahead. Created from input by current Monaco owners, the Dynasty offers features inspired by them, for them.

EXPAND GALLERY

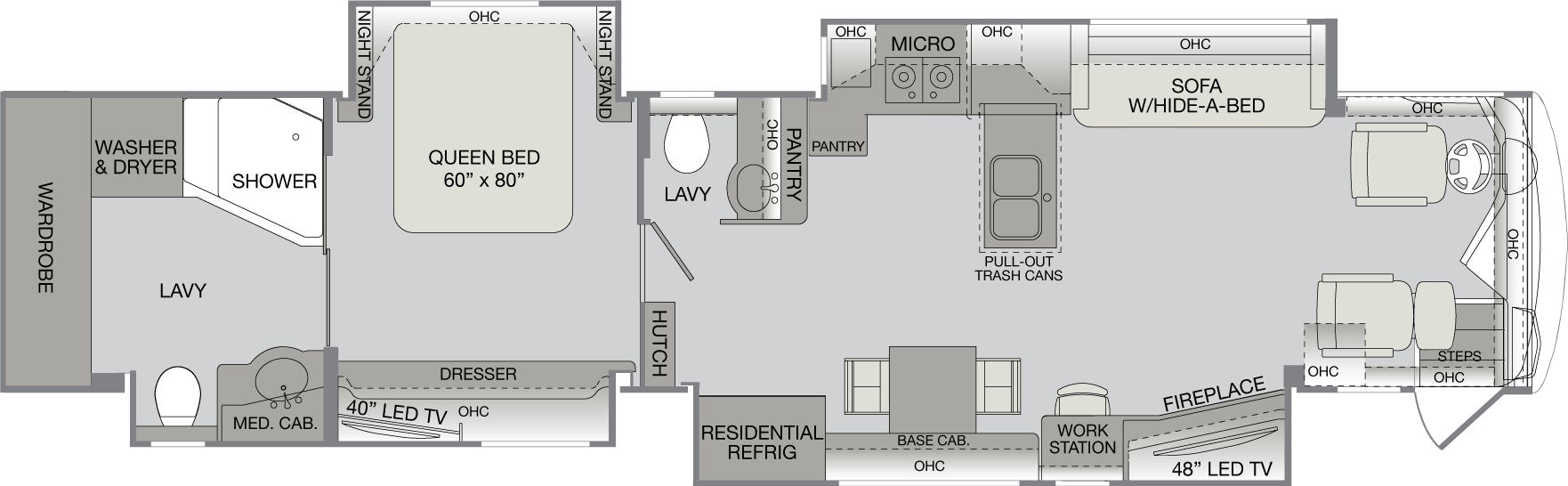

Dynasty Floor Plans
DYN45D
Weights &
Measurements
Dimensions &
Capacities
Roadmaster
Chassis
Footnotes
45D B500i B600i
Wheelbase (inches) 302" 302"
GVWR (lbs)1  51,000 51,000
Front GAWR (lbs)2  17,000 17,000
Tag Axle GAWR (lbs)2  14,000 14,000
Rear GAWR (lbs)2  20,000 20,000
GCWR (lbs)3  66,000 66,000
Hitch Rating Weight (lbs)4  15,000 15,000
Tongue Weight (lbs)4  1,500 1,500
45D B500i B600i
Overall Length (feet and inches)5  44' 11.5" 44' 11.5"
Overall Height (with A/C) (feet and inches) 12' 11" 12' 11"
Overall Width (maximum) (inches)6,7  102" 102"
Interior Height (maximum) (inches) 84" 84"
Interior Width (maximum) (inches) 96" 96"
Fresh Water Holding Tank (gal) 100 100
Grey Water Holding Tank (gal) 60 60
Black Water Holding Tank (gal) 40 40
Roadmaster B500i
Model Freightliner® SLM Series
Engine Cummins® ISX12 w/3-Stage Engine Brake
Transmission Allison® 4000 MH 6-Speed w/Electronic Shift
Alternator 270 Amp Leece-Neville
Torque 1,645 lb-ft @ 1,200 RPM
Horsepower 500HP
Fuel Capacity 150 gal.
Roadmaster B600i
Model Freightliner® SLM Series
Engine Cummins® ISX15 w/3-Stage Engine Brake
Transmission Allison® 4000 MH 6-Speed w/Electronic Shift
Alternator 270 Amp Leece-Neville
Torque 1,950 lb-ft @ 1,200 RPM
Horsepower 600HP
Fuel Capacity 150 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

View all Options (PDF)

Furniture Options

Desk w/Chair (OPT878)
Dishwasher (OPT107)
Electric L-Sofa Jackknife (OPT195)
Freestanding Dinette (OPT832)
Front 40" LED TV (OPT087)
King Bed w/Air 72" x 80" (OPT856)
Washer/Dryer (OPT126)
Washer/Dryer Ready (OPT129)
DYN45P
Weights &
Measurements
Dimensions &
Capacities
Roadmaster
Chassis
Footnotes
45P B500i B600i
Wheelbase (inches) 302" 302"
GVWR (lbs)1  51,000 51,000
Front GAWR (lbs)2  17,000 17,000
Tag Axle GAWR (lbs)2  14,000 14,000
Rear GAWR (lbs)2  20,000 20,000
GCWR (lbs)3  66,000 66,000
Hitch Rating Weight (lbs)4  15,000 15,000
Tongue Weight (lbs)4  1,500 1,500
45P B500i B600i
Overall Length (feet and inches)5  44' 11.5" 44' 11.5"
Overall Height (with A/C) (feet and inches) 12' 11" 12' 11"
Overall Width (maximum) (inches)6,7  102" 102"
Interior Height (maximum) (inches) 84" 84"
Interior Width (maximum) (inches) 96" 96"
Fresh Water Holding Tank (gal) 100 100
Grey Water Holding Tank (gal) 60 60
Black Water Holding Tank (gal) 40 40
Roadmaster B500i
Model Freightliner® SLM Series
Engine Cummins® ISX12 w/3-Stage Engine Brake
Transmission Allison® 4000 MH 6-Speed w/Electronic Shift
Alternator 270 Amp Leece-Neville
Torque 1,645 lb-ft @ 1,200 RPM
Horsepower 500HP
Fuel Capacity 150 gal.
Roadmaster B600i
Model Freightliner® SLM Series
Engine Cummins® ISX15 w/3-Stage Engine Brake
Transmission Allison® 4000 MH 6-Speed w/Electronic Shift
Alternator 270 Amp Leece-Neville
Torque 1,950 lb-ft @ 1,200 RPM
Horsepower 600HP
Fuel Capacity 150 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

View all Options (PDF)

Furniture Options

Dishwasher (OPT107)
Electric L-Sofa Jackknife (OPT195)
Freestanding Dinette (OPT832)
Front 40" LED TV (OPT087)
King Bed w/Air 72" x 80" (OPT856)
Washer/Dryer (OPT126)
Washer/Dryer Ready (OPT129)
Features
Interior General Amenities
From the first step inside, you're immediately surrounded by a carefully crafted, beautifully-designed work of art. Every detail provides supreme comfort, convenience and luxury, from abundant storage to plush materials that exude the premium refinement of Monaco.
12V LED Ceiling & Task Lighting
Decorative Soffits w/Crown Molding
Fully Concealed & Adjustable Cabinet Door Hinges
Hardwood Window Treatments
Heated Electric Radiant Tile Floor
Integrated Latch Hardware in Pocket Doors
Interior MultiPlex Power Management System
Lined Cabinet Interiors
Polished Porcelain Tile Floor

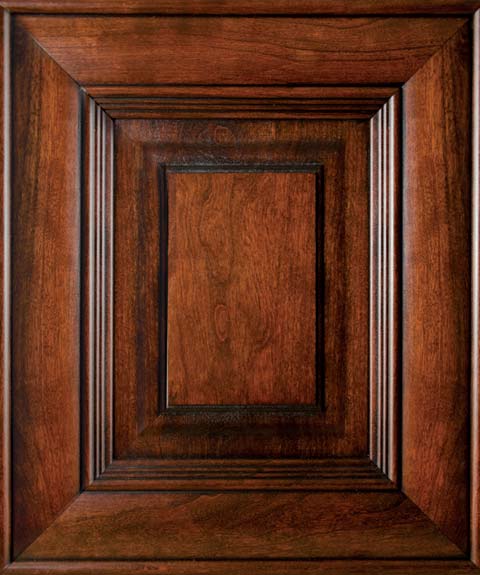

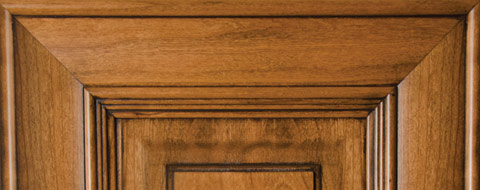

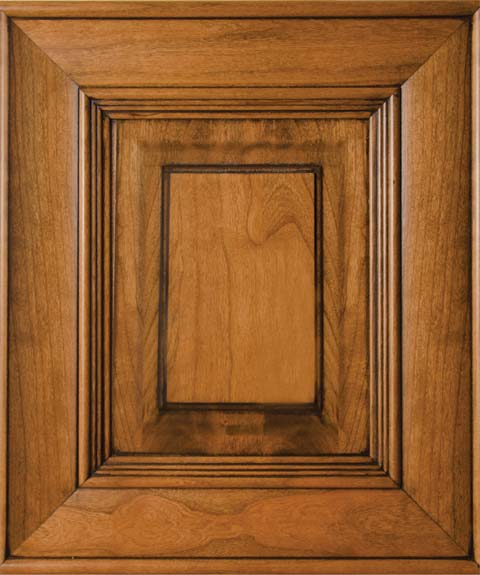

Premium Hardwood Custom Cabinetry & Moldings
Soft Touch Padded Ceiling w/Decorative Trim
Solid-Surface Entry-Step w/LED Accent Lights & Storage
Wood-Trimmed Fan-Tastic® Rain Sensor, Power Roof Vents w/3-Speed Fan (3)
Options
OPT560 - Factory V.I.P. Delivery
OPT693 - Custom Interior Request
See All Amenities
Driver Convenience
Behind the wheel of a Monaco coach, you have a multitude of features at your command. With the comfort and freedom to navigate the roads ahead, driving this luxury motorhome is even more enjoyable. Let the convenience of Monaco escalate your journeys to a whole new level.
Adjustable Brake & Throttle Pedals
Air Horns
Auxiliary Fog Lamps
Auxiliary Start Switch
Backlit Gauges & Switches
Chrome, Heated Side-View Mirrors w/Remote Adjustment & Turn Signal Indicators, Side Vision Cameras Integrated Into Mirrors
Color Camera Monitor w/One-Way Audio
Driver & Passenger LED Reading Lights
Dual-Dash Monitor Design
Halogen Head Lamps
I.C.C. Light Switch
Integrated Rand McNally® RV GPS
Intermittent Windshield Wiper System w/Wet Arm
Keyless Entry Door Access w/Key Fob
Low-Profile Automotive-Style Dash w/Burlwood Accents
Memory Driver Seat
Memory Steering Column
Multiple Auxiliary 12-Volt Dash Receptacles
Powered Windshield, Driver & Passenger Privacy Blinds & Shades
Pressure Pro® Active Tire Pressure Monitoring System
SGM Dash HVAC System w/Additional Defrost Blower
Silverleaf® Chassis Monitoring System
Sirius® Satellite Radio Ready (Subscription Required)
Smart Wheel w/Leather & Burl Wood Trim w/Manual Tilt/Tip/Telescope
Sony® Rear-View Camera
Villa Ultraleather 6-Way Power Driver Seat w/Heat, Power Lumbar & Adjustable Arms
Villa® Ultraleather 6-Way Power Passenger Seat w/Heat, Power Lumbar, Adjustable Arms & Electric Footrest
Xite® 7" Touch Screen Dash Radio w/Handsfree Bluetooth
Options
OPT580 - Collision Warning System
See All Amenities
Living Area
Life on the road has never been better. The exquisite selection of delicate textures and colors, hand-chosen by our interior designer connoisseur provides a breath-taking display of beauty to experience during your next escape. And the refined design of the living area allows you to settle-in, in the comfort and pleasure of your next home for as many miles as your journey stretches.
Central Vacuum System w/Sweep-in Toe Kick
Centralized Command Center
Desk Workstation w/Pop-Up 110V/USB Outlet
Electric Fireplace w/Remote, 5,200 Btu/h
Hardwood Front TV Overhead Cabinetry
Large Passenger Window
Lighted Step Well Area w/Power Cover
Power Roller Shades & Privacy Blinds
Satellite Pre-Wire Package
Sony 48" LED HDTV w/Sound Bar & Subwoofer Mid-coach (45P)
Sony 48" Pop-Up LED HDTV w/Sound Bar & Subwoofer Mid-coach (45D)
Sony Blu-ray® DVD w/Wi-Fi
Options
OPT087 - Front Overhead 48" Sony LED TV
OPT092 - KVH In-Motion Satellite System
OPT095 - Winegard® In Motion Satellite System
OPT570 - iPad® Controller for Lights, Blinds & A/V
See All Amenities
Galley
The galley is an ideal combination of convenience and elegant design. An abundance of built-in storage areas provide ample space to stow everything for the journey ahead. All you need to make delicious meals is at your fingertips. Premium hardwood cabinet doors, face-frames and molding hand-crafted at Monaco's dedicated wood-finishing facility add a luxurious appearance to the galley.
Adjustable Shelves Throughout Appliance Garage (45P)
Countertop Decorative Edge Treatment
Decorative Backsplash
Dual Pull-Out Trash Receptacles (45P)
Flush-Mount Electric 2-Burner Induction Cooktop
French Door Residential Refrigerator w/Icemaker In Door
High-Rise Single-Level Galley Faucet w/Sprayer
Polished Solid-Surface Countertop & Flush Sink Covers
Pop-Up Appliance Valet (45P)
Pull-Out Counter Extension (45P)
Roller Bearing Full-Extension Drawer Guides
Stainless Steel Convection Microwave Oven
Stainless Steel Under-Mount Double-Bowl Sink
Toe-Kick LED Accent Lighting
Options
OPT107 - Dishwasher Drawer
See All Amenities
Bedroom
Designed to provide supremely restful nights, our spacious bedroom design features all of the amenities that make retreating to your nest one of the most comfortable and relaxing areas of your home. Inside, you'll find peace and tranquility in a relaxing atmosphere that conforms to all of your ideal pleasures.
Cedar-Lined Wardrobe
Full-Length Rear Wardrobe
Hardwood 6-Panel Doors - (45D, 45P)
Key-Actuated Hidden Safe
Lift-Up Bed w/Under-Bed Storage
Overhead Cabinetry Above Bed
Polished Solid-Surface Counter & Nightstand Tops
Power Roller Shade & Privacy Blind
Remote Generator Start Switch
Serenity Series Memory Foam Queen Mattress
Shoe Storage Rear Wardrobe
Sony 40" LED HDTV
Sony Blu-ray® DVD Player
Stacked Washer/Dryer
Two Nightstands Each w/110V & USB Outlets
Two-Speed Ceiling Fan
Options
OPT126 - Combination Washer/Dryer
OPT129 - Washer/Dryer Ready w/Shelves
OPT856 - King Air Mattress
See All Amenities
Furniture
You and your guests will be surrounded in comfort when traveling. From the plush feel of our sofa, recliners, and chairs, you'll experience bliss with each passing moment spent inside your home. Each item and fabric is intentionally selected for your satisfaction and enjoyment. So when you're ready to depart from the world outdoors, locate a new layer of excitement indoors.
Decorative Dinette & Folding Guest Chairs
Deep-Base Dinette Cabinet Storage Credenza
Freestanding Ultraleather Desk Chair (45P)
Polished Solid-Surface Dinette Table w/Slide-Out Extension
Villa Ultraleather Sofa Bed w/Air Mattress
Options
OPT195 - Electric Jackknife L-Sofa w/Storage Drawer
OPT832 - Freestanding Round Dinette Table & Chairs
OPT878 - Captain's Desk Chair Upgrade
See All Amenities
Bathroom
Everywhere you turn, you will find premium quality. From the spacious bathroom layout to the pampering attention to detail, Monaco has incorporated all of the features that leave you feeling refreshed and renewed. Like a day in the spa, the bathroom is designed with all of the finest details.
Chrome Luxury Series Faucet
Decorative Custom Tile Backsplash
Guest Bath Polished Solid-Surface Countertop & Integrated Sink
Large Glass-Door Shower Enclosure
Large Skylight in Shower
Manual Roller Shade & Privacy Blind
Master Bath Under-Mount Glass Bowl Sink w/LED Accents - (45D, 45P)
Residential Hand-Held Shower Head
Solid-Surface Shower Surround w/Hand-Laid Tile Inlay
Tecma® Silence Plus 2-Button Porcelain Vacuum Flush Toilets (2)
See All Amenities
Plumbing / Electrical
Behind the scenes are advanced systems are continuously working to keep you comfortable. From our heating system to electrical, our modern technology and sophisticated electronics provide the convenience and the most up-to-date plumbing and power control systems and monitoring for whole coach comfort and reliability.
AquaHot 450D Heating System
Auto Generator Start
Energy Management System (50 Amp)
Gravity & Pressurized Fresh Water Fill
Heat Pump on Rear AC Unit
Heated Water & Holding Tank Compartments
Holding Tank San-T-Flush System
Inverter & Battery Monitor
Multi-Point Water Pump Switching
PEX Plumbing System
Power Control System Monitor
Power Water Hose Reel
Roof Condensation Drains
SensaTank Level Monitoring System (Interior and Exterior Monitor)
Surge Guard Electrical System Protection
Three 15.0M Low-Profile Roof Air Conditioners
Variable-Speed On-Demand Water Pump
Waste Management System
Whole Coach Water Filtration System
Options
OPT134 - AquaHot 600
See All Amenities
Safety
Designed to help protect your most precious cargo, Monaco is engineered with safety features like an emergency egress window, three-point integrated seat belts at the driver and passenger seats and safety lights throughout.
3-Point Integrated Seat Belts at Driver & Passenger Seats
Carbon Monoxide (CO) Detector
Daytime Running Lights
Deadbolt Lock on Entry Door
Emergency Egress Window
Fire Extinguisher
High-Mounted Third Brake Light
Key-Actuated Hidden Safe
Lighted Exterior Grab Handle
Momentary Courtesy Lighting at Entry & Passenger Area
Side Docking Lamps
Side Turn Signal Indicators
Smoke Detector/Alarm
See All Amenities
Exterior General Amenities
Expert craftsmanship is found throughout. From its innovative construction to the durable chassis, you're prepared for the road ahead with the superior performance and strength of a Monaco coach. In a Monaco, you will command the road and truly Return to Power.
Battery Disconnect Switches for House & Chassis
Brushed Stainless Kick Plate Under Entry Door
Chrome Luggage Door Handles
Cummins Onan® 10.0 kW Quiet Diesel Generator
Electrical Outlets in Luggage Compartments
Exterior Drop-Down TV (Sony 40" LED) - (45D, 45P)
Full-Width Rear Rock Guard w/Stainless Logo Panel
High-Mounted Engine Air Intake
Keyless Entry Touch Pad
Large Rear Engine Access Door w/Lift Assist Struts
LED Clearance Lights
Maintenance-Free (8) Absorbed Glass Mat 6-Volt Batteries
Power Bus-Style Double Entry Step
Power Cord Reel (50 Amp)
Power Luggage Door Locks (Select Doors) w/Remote Key Fob
Powered Slide-Out Generator Access Tray
Protective Front Mask
Pure Sine Wave Inverter/Charger (2800w)
Remote Power Cord Reel (50 Amp)
Solar Charging Panel (95w)
Tray Pkg-A w/ 2-90" Power Slides
Tray Pkg-B w/ 1-54" Manual, 1-36" Manual & 1-90" Power Slide
Options
OPT035 - Custom Exterior Paint Color Request
OPT051 - Two-Piece Aluminum Rear Ladder
OPT325 - 12K Generator
See All Amenities
Awnings / Doors / Windows
A seamless design is carried throughout. From the intuitively-positioned awnings, doors, and windows to the magnificent aesthetics, the exterior of your coach is passionately designed to command the road and catch a few eyes giving you more to love about traveling in your coach.
Air Seal Dual-Latch Wide Entry Door w/Screen Door
Dual Girard® Nova 2-stage Awnings (2) w/LED Lights, Wind Sensor & Remote
Large Frameless Tinted Tilt-Out Windows
Power Entry Door Awning
Power Pilot Window
Slide-out Topper Awnings
Options
OPT271 - Additional Window Awning Pkg (Charcoal)
OPT272 - Additional Window Awning Pkg (Linen)
See All Amenities
Exterior Body Construction
Quality-built using innovative construction techniques and premium materials, our design and engineering teams use the most effective and reliability-tested manufacturing methods, giving you a trusted piece of mind to wholly enjoy the journeys and experiences set before you. With solid construction and the magnitude of solid performance, there is no excuse not to find your next go-route.
5-Layer Floor w/3" Foam Insulation
6-Layer Radius Roof w/up to 5" Foam Insulation
Acoustic Absorption Material in Front, Rear & Engine Compartment
Aluminum-Framed Wall, Roof & Floor Construction
Automotive Sand/Buff 5-Color Full Body Paint w/Fades & High Gloss Finish
Full Fiberglass Front & Rear Caps
Gel Coat Fiberglass Sidewalls w/No Wood Substrate
Insulated Strut-Assisted Side-Hinged Luggage Doors
Molded Fiberglass Fenders
One-Piece Bonded Front Windshield
One-Piece Molded Fiberglass Roof
Reinforced Interlocking Aluminum Connections at Roof, Sidewall & Floor
Seamless Cap to Sidewall Transitions
Vacu-bond® Sidewall, Roof, Floor & Rear Wall
See All Amenities
All New Roadmaster Chassis
The all-new, B-series Roadmaster Chassis with big-bore Cummins engines and a stronger, more durable modular bridge design provide superior performance and strength that place you in command of the road and give you the power to easily take along what you need for the journey ahead.
(6) Dual High-Flow Fuel Fill w/Locking Doors
Anti-Lock Brake System (ABS)
Automatic 4-Point Dual (Air & Hydraulic) Leveling System
Automatic Traction Control
Custom Tuned Sachs® Shocks
Easy Access Remote Filter Location
Engine Block Heater (1500 Watt)
Front Air Disc Brakes & Rear Drum Brakes
Heavy-Duty E-Coated Steel Roadmaster Bridge
Neway® Air Suspension w/Large Volumetric Air Bags (6)
Polished Aluminum Wheels (6) 22.5 x 9
Protective Spray-On Undercoating
Remote Air System Connection w/Hose & Fittings
Side-Mounted Aluminum Radiator w/CAC
Tag Axle w/ Air Dump Control
Two 1900 CCA Maintenance-Free Chassis Batteries
ZF® Independent Front Suspension w/60-Degree Steering Angle
See All Amenities
Décor
Classic Radiance
Grand Canyon Sunset
Satin Silhouette
Exterior
+

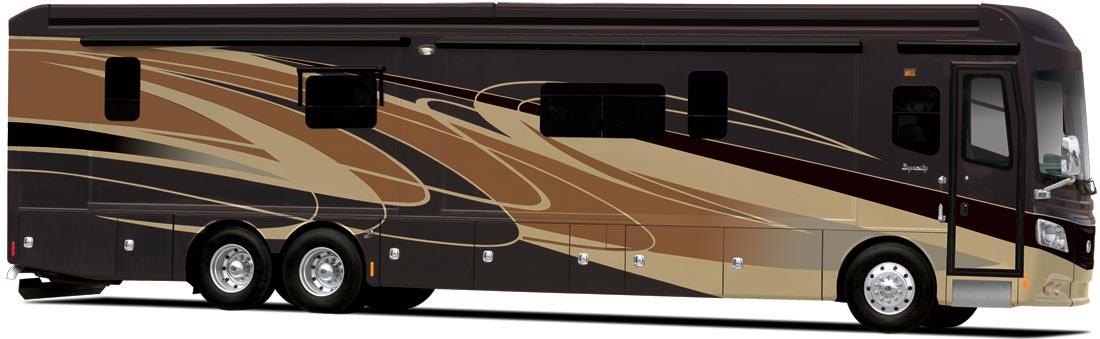

Classic Radiance
+

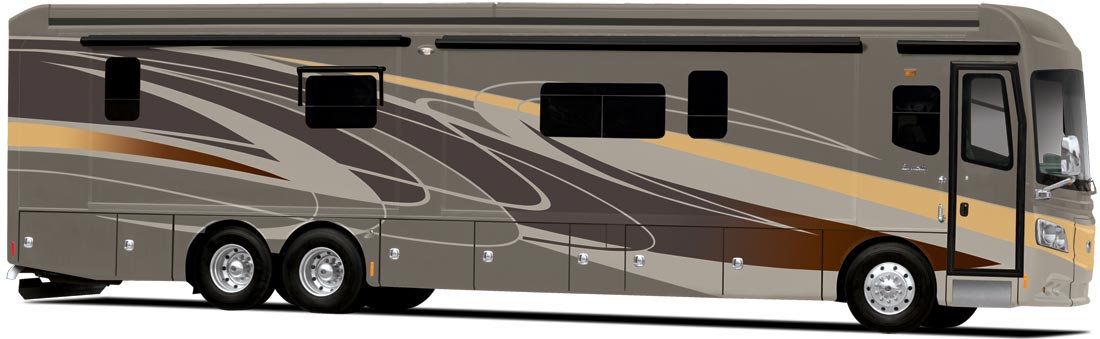

Grand Canyon Sunset
+

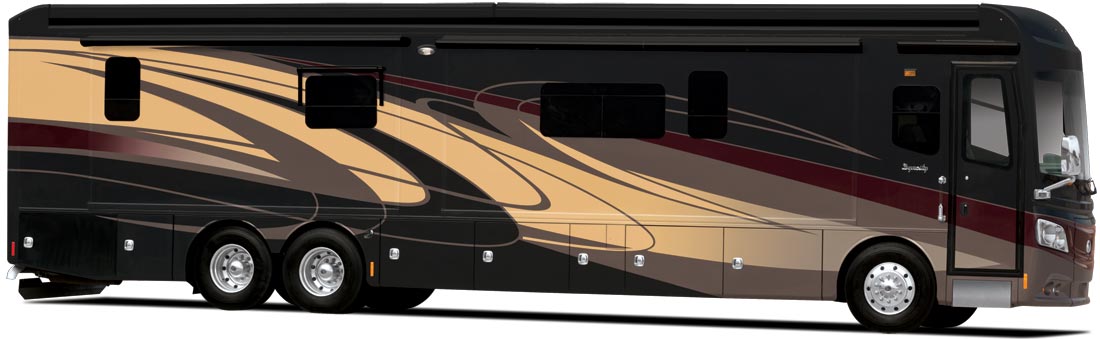

Satin Silhouette
Interior
Classic Radiance
+
Grand Canyon Sunset
+
Satin Silhouette
+
Wood Trim
+

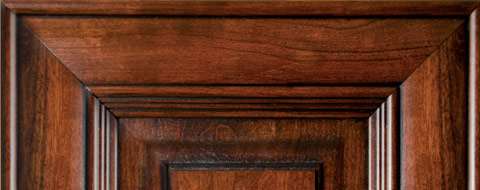

Glazed Dark Cherry Glazed Italian Sienna
Classic Radiance
Grand Canyon Sunset
Satin Silhouette
Wood Trim
Glazed Dark Cherry Glazed Italian Sienna
The Roadmaster Chassis
Previous
Next


  • Roadmaster Chassis
    The superior performance of the Cummins ISX engine is an ideal match for the 2016 Dynasty. When you ride on the all-new Roadmaster Chassis, you get the full support and proven expertise of Freightliner Custom Chassis and its nationwide service network with over 400 locations, many of which include RV-dedicated Oasis locations. And with 24/7 Direct, 2016 owners receive direct access to factory technicians who can respond to all inquiries and technical issues.
  • 1. ELECTRO-COATED CHASSIS BRIDGE
    An electrically charged dipping process in which a corrosion barrier bonds to the steel, substantially increasing longevity, quality and reliability. And for good measure, we add undercoating to ensure all components are protected.
  • 2. I-BEAM STEEL STRUCTURE
    High-strength steel I-Beam is stronger than C-channel, and features enhanced cross-sections optimized for strength while reducing unnecessary weight.
  • 3. HUCK BOLTS
    Strongest, most reliable aerospace-grade fastener available.
  • 4. PASS-THROUGH STORAGE
    The all-new Roadmaster Chassis storage capacity is larger than before without compromising chassis strength.
  • 5. ALL-STEEL BASEMENT
    There’s no wood in this basement; lined with steel then electro-coated and undercoated, this chassis is professionally engineered and built to last.
  • 6. CUSTOM-TUNED SACHS® SHOCKS
    Tuned for the stable and responsive driving experience you expect from a Roadmaster, premium shocks increase comfort and safety.
  • 7. ZF® INDEPENDENT SUSPENSION
    Heavy-duty stabilizer bars and beams widen the effective load center on the axle, creating a higher resistance to vehicle roll, while improving responsiveness and handling for increased driver comfort.
  • 8. 60° WHEEL CUT
    The tightest turning radius of any motorhome chassis for the best maneuverability available.
  • 9. 150-gal DUAL FUEL FILL
    High-flow tank access from either side of the coach, mounted midship for superior load balancing.
  • 10. MICHELIN® TIRES
    Designed to provide excellent handling, comfort and durability.
  • 11. POWER GENERATOR SLIDE
    Providing easy access to the front chassis components and the powerful Cummins® Onan® generator.
  • 12. CUMMINS® ISX POWERED
    Delivering 500 HP / 1,645 lb-ft in the standard ISX12, ample power for your journey ahead. The optional ISX15 fulfills every dream for more power, providing 600 HP / 1,950 lb-ft.
  • 13. 270-amp ALTERNATOR
    Premium Leece-Neville high-output alternator to charge your systems faster.
  • 14. LARGER VOLUMETRIC AIRBAGS
    Part of the Neway® Air Suspension System, the larger volumetric airbags increase ride stability and comfort.
  • 15. EASY FILTER ACCESS
    Conveniently located, components that need scheduled maintenance are remote-mounted to be more easily accessible.
