2016 MONACO

DIPLOMAT

The power to command the road. The power to dream. Monaco continues its return to power with the new 2016 Diplomat. Riding on the strength of the custom-tuned Roadmaster B450 chassis, the 43-foot Diplomat is loaded with features throughout. A unique bath-and-a-half floorplan includes a mid-ship TV and fireplace for ultimate convenience and comfort. And we’re just getting started. Every detail. Every finish. Every mark of hand-drawn craftsmanship is pure artistry. From the ground up, luxury rounds each corner and interlocks every edge of the all-new dynamic Monaco Diplomat.
EXPAND GALLERY
Diplomat Floor Plans

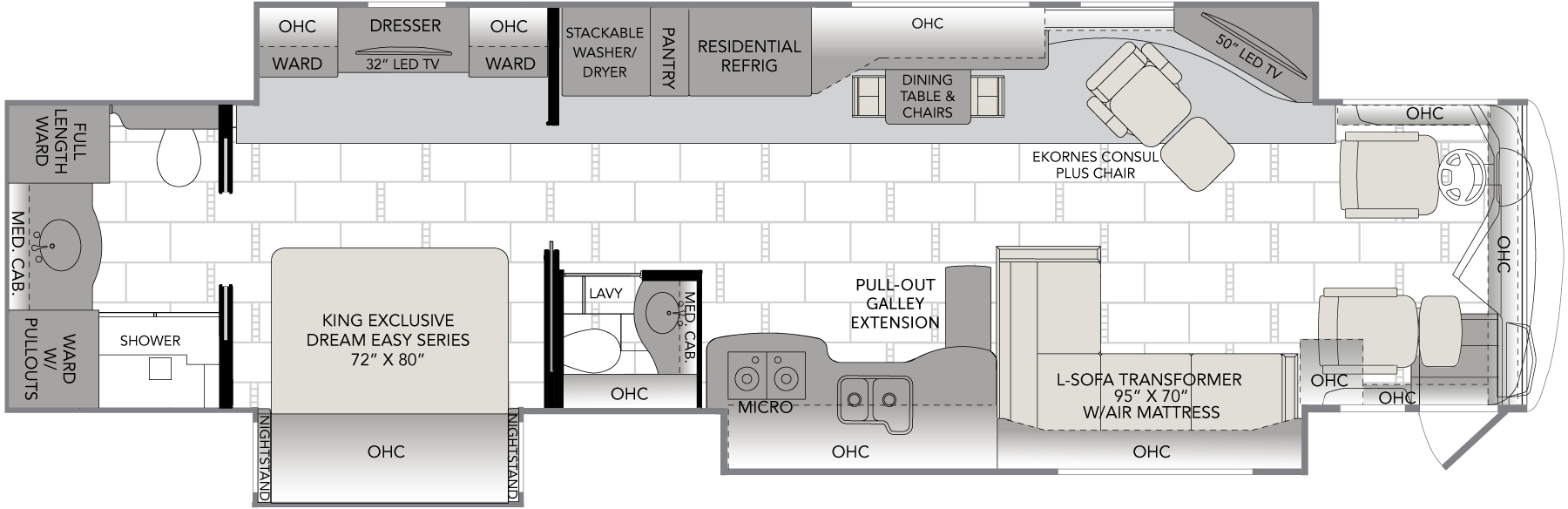

DIP43SG
Weights &
Measurements
Dimensions &
Capacities
Roadmaster
Chassis
Footnotes
43SG B450
Wheelbase (inches) 302"
GVWR (lbs)1 44,600
Front GAWR (lbs)2 14,600
Tag Axle GAWR (lbs)2 10,000
Rear GAWR (lbs)2 20,000
GCWR (lbs)3 59,600
Hitch Rating Weight (lbs)4 15,000
Tongue Weight (lbs)4 1,500
43SG B450
Overall Length (feet and inches)5 43' 5"
Overall Height (with A/C) (feet and inches) 12' 11"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 84"
Interior Width (maximum) (inches) 96"
Fresh Water Holding Tank (gal) 100
Grey Water Holding Tank (gal) 60
Black Water Holding Tank (gal) 40
Water Heater Tank (gal) 10
Roadmaster B450
Model Freightliner® XCM Series
Engine Cummins® ISL9 w/2-Stage Engine Brake
Transmission Allison® 3000 MH 6-Speed w/ Electronic Shifter
Alternator 160 Amp Delco-Remy
Torque 1,250 lb-ft @ 1,400 RPM
Horsepower 450HP
Fuel Capacity 150 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

View all Options (PDF)

Furniture Options

Dishwasher (OPT107)
Electric Fireplace (OPT139)
Emergency Exit Door (OPT641)
Front 32" LED TV (OPT087)
DIP43Q
Weights &
Measurements
Dimensions &
Capacities
Roadmaster
Chassis
Footnotes
43Q B450
Wheelbase (inches) 302"
GVWR (lbs)1 44,600
Front GAWR (lbs)2 14,600
Tag Axle GAWR (lbs)2 10,000
Rear GAWR (lbs)2 20,000
GCWR (lbs)3 59,600
Hitch Rating Weight (lbs)4 15,000
Tongue Weight (lbs)4 1,500
43Q B450
Overall Length (feet and inches)5 43' 5"
Overall Height (with A/C) (feet and inches) 12' 11"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 84"
Interior Width (maximum) (inches) 96"
Fresh Water Holding Tank (gal) 100
Grey Water Holding Tank (gal) 60
Black Water Holding Tank (gal) 40
Water Heater Tank (gal) 10
Roadmaster B450
Model Freightliner® XCM Series
Engine Cummins® ISL9 w/2-Stage Engine Brake
Transmission Allison® 3000 MH 6-Speed w/ Electronic Shifter
Alternator 160 Amp Delco-Remy
Torque 1,250 lb-ft @ 1,400 RPM
Horsepower 450HP
Fuel Capacity 150 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

View all Options (PDF)

Furniture Options

Desk w/Recliner (OPT881)
Dishwasher (OPT107)
Electric Fireplace (OPT139)
Emergency Exit Door (OPT641)
Expandable L-Sofa (OPT191)
Facing Dinette (OPT830)
Front 32" LED TV (OPT087)
King Bed w/Air 72" x 80" (OPT856)

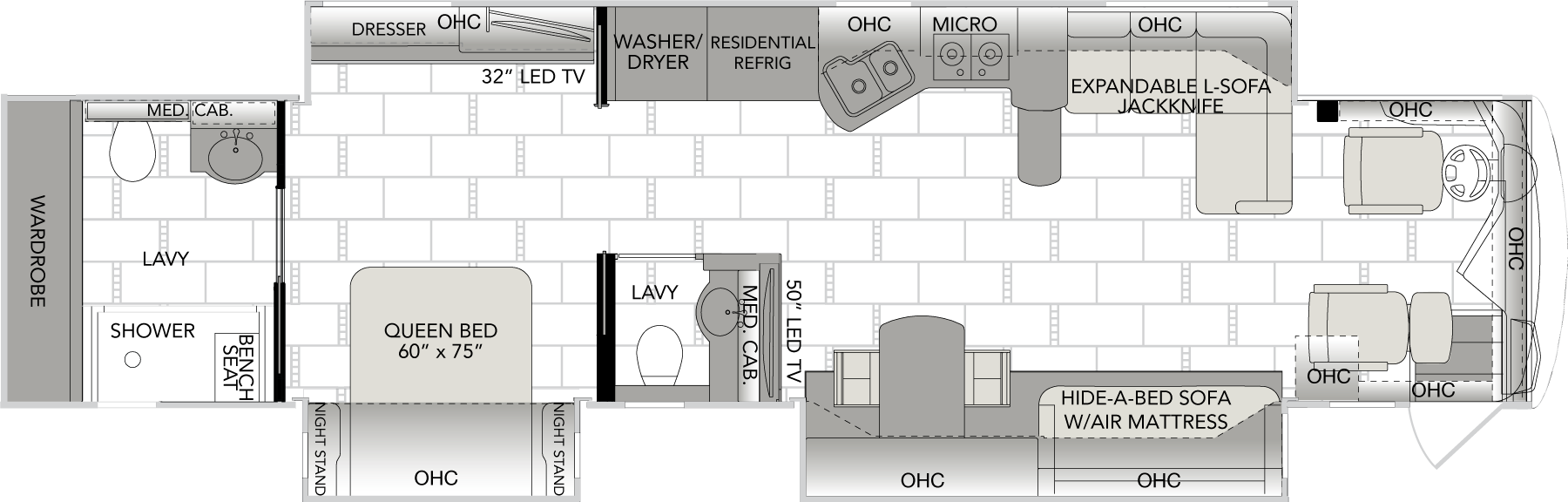

DIP43SF
Weights &
Measurements
Dimensions &
Capacities
Roadmaster
Chassis
Footnotes
43SF B450
Wheelbase (inches) 302"
GVWR (lbs)1 44,600
Front GAWR (lbs)2 14,600
Tag Axle GAWR (lbs)2 10,000
Rear GAWR (lbs)2 20,000
GCWR (lbs)3 59,600
Hitch Rating Weight (lbs)4 15,000
Tongue Weight (lbs)4 1,500
43SF B450
Overall Length (feet and inches)5 43' 10"
Overall Height (with A/C) (feet and inches) 12' 11"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 84"
Interior Width (maximum) (inches) 96"
Fresh Water Holding Tank (gal) 100
Grey Water Holding Tank (gal) 60
Black Water Holding Tank (gal) 40
Water Heater Tank (gal) 10
Roadmaster B450
Model Freightliner® XCM Series
Engine Cummins® ISL9 w/2-Stage Engine Brake
Transmission Allison® 3000 MH 6-Speed w/ Electronic Shifter
Alternator 160 Amp Delco-Remy
Torque 1,250 lb-ft @ 1,400 RPM
Horsepower 450HP
Fuel Capacity 150 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

View all Options (PDF)

Furniture Options

Dishwasher (OPT107)
Electric Fireplace (OPT139)
Emergency Exit Door (OPT641)
Facing Dinette (OPT830)
Front 32" LED TV (OPT087)
Hide-a-Bed Sofa w/Air Mattress (OPT199)
King Bed w/Air 72" x 80" (OPT856)
King Bed w/Memory Foam 72" x 80" (OPT854)
Queen Bed w/Air 60" x 75" (OPT855)
Sofa Jackknife (OPT198)
DIP43SG
Weights &
Measurements
Dimensions &
Capacities
Roadmaster
Chassis
Footnotes
43SG B450
Wheelbase (inches) 302"
GVWR (lbs)1 44,600
Front GAWR (lbs)2 14,600
Tag Axle GAWR (lbs)2 10,000
Rear GAWR (lbs)2 20,000
GCWR (lbs)3 59,600
Hitch Rating Weight (lbs)4 15,000
Tongue Weight (lbs)4 1,500
43SG B450
Overall Length (feet and inches)5 43' 5"
Overall Height (with A/C) (feet and inches) 12' 11"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 84"
Interior Width (maximum) (inches) 96"
Fresh Water Holding Tank (gal) 100
Grey Water Holding Tank (gal) 60
Black Water Holding Tank (gal) 40
Water Heater Tank (gal) 10
Roadmaster B450
Model Freightliner® XCM Series
Engine Cummins® ISL9 w/2-Stage Engine Brake
Transmission Allison® 3000 MH 6-Speed w/ Electronic Shifter
Alternator 160 Amp Delco-Remy
Torque 1,250 lb-ft @ 1,400 RPM
Horsepower 450HP
Fuel Capacity 150 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

View all Options (PDF)

Furniture Options

Dishwasher (OPT107)
Electric Fireplace (OPT139)
Emergency Exit Door (OPT641)
Front 32" LED TV (OPT087)
Features
Interior General Amenities
From the first step inside, you're immediately surrounded by a carefully crafted, beautifully-designed work of art. Every detail provides supreme comfort, convenience and luxury, from abundant storage to plush materials that exude the premium refinement of Monaco.
12V LED Ceiling & Task Lighting
84" Interior Ceiling Height
Adjustable Shelves Throughout
Central Vacuum System
Complete PEX Plumbing System
Countertop Decorative Edge Treatment
Crown Molding w/Decorative Corner Caps
Decorative Soffits w/Crown Molding
Deluxe Roller Bearing, Full-Extension Drawer Guides & Transit-Ship Locks
Fan-Tastic® Power Roof Vent w/Wall Switch (Multiple Locations)
Fully Concealed & Adjustable Cabinet Door Hinges
Hardwood Cabinet Doors/Drawers
Hardwood Window Treatments
Heated Tile Floor
Integrated Latch Hardware in Pocket Doors
LED Lighting
Lined Cabinet Interiors
Manual Double Roller Shades
Polished Porcelain Tile Floor w/Accent Inlays
Roof-Mounted, High-Efficiency A/C &
Soft Touch Padded Ceiling w/Decorative Trim
Solid Wood Face Frame Cabinets
Wall Switches (Includes Switches for Ceiling Lights & Vents)
Options
OPT090 - Winegard® Stationary DSS System
OPT095 - Winegard In Motion Satellite System
OPT400 - CSA Package (Canadian Specs)**
See All Amenities
Driver Convenience
Behind the wheel of a Monaco coach, you have a multitude of features at your command. With the comfort and freedom to navigate the roads ahead, driving this luxury motorhome is even more enjoyable. Let the convenience of Monaco escalate your journeys to a whole new level.
(2) 12V Power Outlets at Dash
110V Power Outlet at Dash
Adjustable 3-Point Seatbelts at Driver & Front Passenger Seats (w/Adjustable Shoulder Straps)
Air Horns
Anti-Lock Brake System (ABS)
Automotive Wrap-Around Dash
Auxiliary Fog Lamps
Auxiliary Start Circuit
Backlit Switches & Gauges
Battery Disconnect System
Color Back-Up Monitor
Color Rear & Side-Vision Cameras
Cruise Control
Denso® High-Output Auto A/C Heater Combo
Driver & Passenger LED Reading Lights
Driver Left-Console w/Lower Storage Bin
Dual-Dash Monitor Design
Manual Driver/Passenger Roller Shades/Blinds
Multiple Auxiliary 12-Volt Dash Receptacles
Passenger Armrest
Passenger Seat Power Footrest & Adjustable Arm
Power Entry Step Cover
Powered Windshield Privacy Blinds & Shades
Radio Switch Main/Auxiliary Power
Remote/Heated Chrome Rear-View Mirrors w/Turn Signals & Sideview Cameras
Smart Wheel w/Tilt/Telescoping Steering Wheel
Solid-Surface Entry-Step w/LED Accent Lights
USB Charger (Driver Side)
Villa® Driver/Front Passenger Ultraleather Captain's Chairs w/Reclining Back/Slide Controls/Power/Heated/Adjustable Arms
Windshield Wipers w/Wet Arm
Xite® Touch Screen Dash Radio w/GPS Navigation & Sirius®
Options
OPT346 - Satellite Radio (Subscription Required)
See All Amenities
Living Area
Life on the road has never been better. The exquisite selection of delicate textures and colors, hand-chosen by our interior designer connoisseur provides a breath-taking display of beauty to experience during your next escape. And the refined design of the living area allows you to settle-in, in the comfort and pleasure of your next home for as many miles as your journey stretches.
50" LED HDTV Mid-Ship
Blu-ray DVD Player
Sound Bar
TV Antenna
Options
OPT087 - Front 32" LED HDTV in Front Overhead
OPT139 - Electric Fireplace
See All Amenities
Galley
The galley is an ideal combination of convenience and elegant design. An abundance of built-in storage areas provide ample space to stow everything for the journey ahead. All you need to make delicious meals is at your fingertips. Premium hardwood cabinet doors, face-frames and molding hand-crafted at Monaco's dedicated wood-finishing facility add a luxurious appearance to the galley.
Adjustable Cabinet Shelves (Select Cabinets)
Decorative Backsplash
Flush-Mount Electric 2-Burner Induction Cooktop
French Door Residential Refrigerator w/Icemaker In Door
High-Rise Single-Level Galley Faucet w/ Sprayer
Large, Double Solid-Surface Sink
Polished Solid-Surface Countertops & Sink Covers
Pull-Out Counter Extension
Under-Galley Shelving & Wastebasket
Whirlpool® 1.9 cu.ft. Convection Stainless Steel Microwave Oven w/Built-in Range Hood & Lights
Options
OPT107 - Dishwasher Drawer
See All Amenities
Bedroom
Designed to provide supremely restful nights, our spacious bedroom design features all of the amenities that make retreating to your nest one of the most comfortable and relaxing areas of your home. Inside, you'll find peace and tranquility in a relaxing atmosphere that conforms to all of your ideal pleasures.
Bedroom Entertainment Center w/32" LED HDTV
Bedspread w/Decor Pillows
Hardwood 6-Panel Doors
King Bed Exclusive Dream Easy Series 72" x 80" (43SG)
Lift-Up Bed w/Under-Bed Storage
Mirrored Wardrobe Doors
Overhead Cabinetry Above Bed
Polished Solid-Surface Counter & Nightstand Tops
Power Roller Shade & Privacy Blind
Queen Memory Foam Mattress
Rear Wardrobe w/Cedar Lining, Carpeted Floor & Wire Organizer
Remote Generator Start Switch
Stackable Washer & Dryer
Two-Speed Ceiling Fan
Wardrobe Lighting
Options
OPT854 - King Bed W/Memory Foam 72" x 80"
OPT855 - Queen Bed W/Air 60" x 75"
OPT856 - King Air Mattress 72" x 80"
See All Amenities
Furniture
You and your guests will be surrounded in comfort when traveling. From the plush feel of our sofa, recliners, and chairs, you'll experience bliss with each passing moment spent inside your home. Each item and fabric is intentionally selected for your satisfaction and enjoyment. So when you're ready to depart from the world outdoors, locate a new layer of excitement indoors.
Dual Euro Recliners (43DF, 43SF)
Ekornes Consul Plus Chair (43SG)
Expandable L-Sofa Jackknife (43SF)
Hide-A-Bed Sofa w/Air Mattress (43SF)
Sofa w/Hide-A-Bed (43DF)
Villa® Residential Seat Styling
Villa® Ultraleather L-Sofa Bed w/Air Mattress (43SG)
Options
OPT198 - Sofa Jackknife
OPT199 - Hide-A-Bed Sofa w/Air Mattress (43SF)
OPT830 - Facing Dinette
See All Amenities
Bathroom
Everywhere you turn, you will find premium quality. From the spacious bathroom layout to the pampering attention to detail, Monaco has incorporated all of the features that leave you feeling refreshed and renewed. Like a day in the spa, the bathroom is designed with all of the finest details.
A/C Venting
Cabinet Toe Kicks
Decorative Custom Tile Backsplash
Hardwood Bath Door/Trims
LED Light Over Sink
Molded Grani-Coat Shower Enclosure w/Skylight
Porcelain Vacuum Flush Toilet
Spa Shower (43SF)
Vanity w/Dual Solid-Surface Sinks & Make-Up Bench
See All Amenities
Plumbing / Electrical
Behind the scenes are advanced systems are continuously working to keep you comfortable. From our heating system to electrical, our modern technology and sophisticated electronics provide the convenience and the most up-to-date plumbing and power control systems and monitoring for whole coach comfort and reliability.
120V/12V AC/DC Converter
2,800-Watt Pure Sine Wave Inverter w/Remote 50-Amp Service
Aqua-Hot® Heating System 50,000 Btu/h (House & Water)
Auto Generator Start
Demand Water Pump w/Filter
Gravity & Pressurized Fresh Water Fill
Heat Pump on Rear AC Unit
Heated Water & Holding Tank Compartments
Holding Tank San-T-Flush System
Inverter & Battery Monitor
Quiet Cool Ducted A/C
Water Pump Switch (Multiple Locations)
Whole Coach Water Filtration System
See All Amenities
Safety
Designed to help protect your most precious cargo, Monaco is engineered with safety features like an emergency egress window, three-point integrated seat belts at the driver and passenger seats and safety lights throughout.
3-Point Integrated Seat Belts at Driver & Passenger Seats
Carbon Monoxide Detector/Alarm
Central Electrical Panel
Energy Management System (EMS) w/Soft Start
Fire Extinguisher
Multiple Seatbelt Locations
Neutral Loss Protection
Smoke Detector/Alarm
See All Amenities
Exterior General Amenities
Expert craftsmanship is found throughout. From its innovative construction to the durable chassis, you're prepared for the road ahead with the superior performance and strength of a Monaco coach. In a Monaco, you will command the road and truly Return to Power.
10.0 kW Onan® Quiet Diesel Generator w/Power Slide
20' Sewer Hose
3-Point Integrated Seat Belts at Driver & Passenger Seats
Aluminum Wheels
Automatic Generator Start System
Automotive Safety Glass
Continuous One-Piece Compartment Bulb Seal
Daytime Running Lights
Electrical Outlets in Luggage Compartments
Fiberglass Front Quarter Panels
Fiberglass Front/Rear Caps w/High Mounted Taillights
Fiberglass Wheel Well Trims
Four 6V/Deep-Cycle House Batteries
Front & Mid-Coach Docking Lights
Full-Width Rear Rock Guard w/Stainless Logo Panel
Heavy-Duty E-Coated Steel Roadmaster Bridge
Hidden, Stainless Steel Latch Rods
High-Mounted Third Brake Light
Insulated Aluminum Luggage Doors w/ Single Paddle Metal Latches & PowercoatSteel Hinges
Keyless Entry Remote
LED Clearance Lights
Lighted Luggage Compartments
Molded Fiberglass Roof & Fenders
Mud Flaps
Park Cable Receptacle
Pass-Through Storage
Porch Light
Power Entry Step
Protective Front Mask
Side Docking Lamps
Side Swinging Luggage Doors
Side Turn Signal Indicators
Sony 32" LED TV
Tag-Axle Suspension w/Passive Steering
Tire Valve Extenders
Toilet Tank San-T-Flush System
Touch Sensor Tank Monitoring System
Underhood Utility Light
Utility Compartment w/Exterior Shower
Options
OPT035 - Custom Exterior Paint Color Request
OPT051 - Two-Piece Aluminum Rear Ladder
OPT304 - Solar Electric Panel
OPT641 - Emergency Exit Door - Patent Pending (43SF)
OPT672 - Power Water Hose Reel
OPT965 - 1st Full Bay 90" S/O Tray
OPT966 - 1st Full Bay 36"/54" S/O Tray
OPT967 - 2nd Full Bay 90" S/O Tray
OPT968 - 2nd Full Bay 36"/54" S/O Tray
OPT970 - 2nd Full Bay 54" S/O Tray
See All Amenities
Awnings / Doors / Windows
A seamless design is carried throughout. From the intuitively-positioned awnings, doors, and windows to the magnificent aesthetics, the exterior of your coach is passionately designed to command the road and catch a few eyes giving you more to love about traveling in your coach.
Awning Rail/Drip Molding (Both Sides)
Chrome Luggage Door Handles
Deadbolt Lock on Entry Door
Doorside Patio Receptacle
Easy Sweep Flooring at Entry Step
Emergency Egress Window
Entry Door w/Screen Door & Deadbolt Lock
Frameless Flush Mount Windows
Lighted Entry Assist Handle
Power Awning w/LED Light Strip &
Options
OPT271 - Additional Window Awning Pkg (Linen Tweed)
OPT272 - Additional Window Awning Pkg (Charcoal)
See All Amenities
Exterior Body Construction
Quality-built using innovative construction techniques and premium materials, our design and engineering teams use the most effective and reliability-tested manufacturing methods, giving you a trusted piece of mind to wholly enjoy the journeys and experiences set before you. With solid construction and the magnitude of solid performance, there is no excuse not to find your next go-route.
5-Layer Floor w/ 3" Foam Insulation
6-Layer Radius Roof w/up to 5" Foam Insulation
Acoustic Absorption Material in Front, Rear & Engine Compartment
Aluminum-Framed Wall, Roof & Floor
Full Fiberglass Front & Rear Caps
Gel Coat Fiberglass Sidewalls w/No Wood Substrate
Insulated Strut-Assisted Side-Hinged Luggage Doors
Large One-Piece Bonded-in Windshield
Molded Fiberglass Radius Roof w/Ducted A/C
One-Piece Molded Fiberglass Roof
Premium Sand & Buff 4-Color Full
Reinforced Interlocking Aluminum
Roadmaster Chassis
Seamless Cap to Sidewall Transitions
Vacu-bond® Sidewall, Roof, Floor & Rear Wall
See All Amenities
All New Roadmaster Chassis
The all-new, B-series Roadmaster Chassis with big-bore Cummins engines and a stronger, more durable modular bridge design provide superior performance and strength that place you in command of the road and give you the power to easily take along what you need for the journey ahead.
Automatic 4-Point Dual (Hydraulic) Leveling System
Automatic Traction Control
Custom Tuned Sachs® Shocks (6)
Dual High-Flow Fuel Fill w/Locking Doors
Easy-Access Remote Filter Location
Engine Block Heater (1500 Watt)
Front Air Disc Brakes & Rear Drum Brakes
Heavy-Duty E-Coated Steel Roadmaster Bridge
Neway® Air Suspension w/Large Volumetric Air Bags (6)
Polished Aluminum Wheels (6) 22.5 x 9
Protective Spray-On Undercoating
Remote Air System Connection w/Hose & Fittings
Tag Axle w/Air Dump Control
Two 1900 CCA Maintenance-Free Chassis Batteries
ZF® Independent Front Suspension w/60-Degree Steering Angle
See All Amenities
Décor
Vapor Mist
Desert Mirage
Manhattan Bronze II
Exterior
+

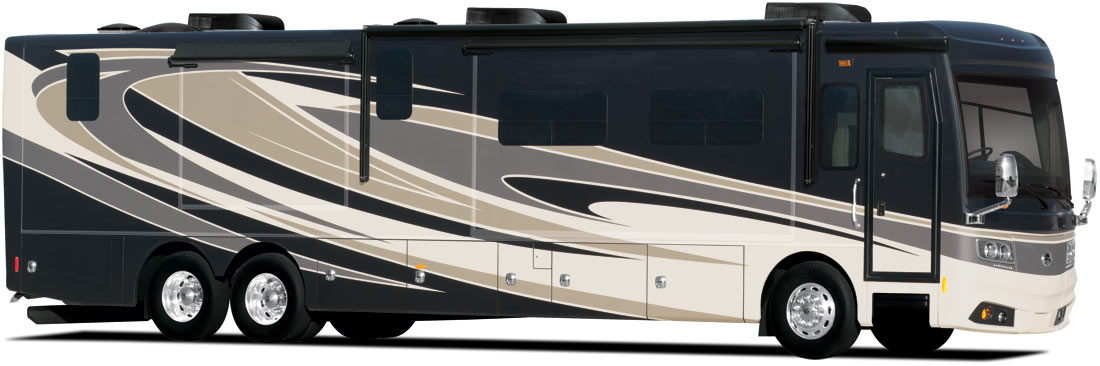

Vapor Mist
2016 diplomat
+

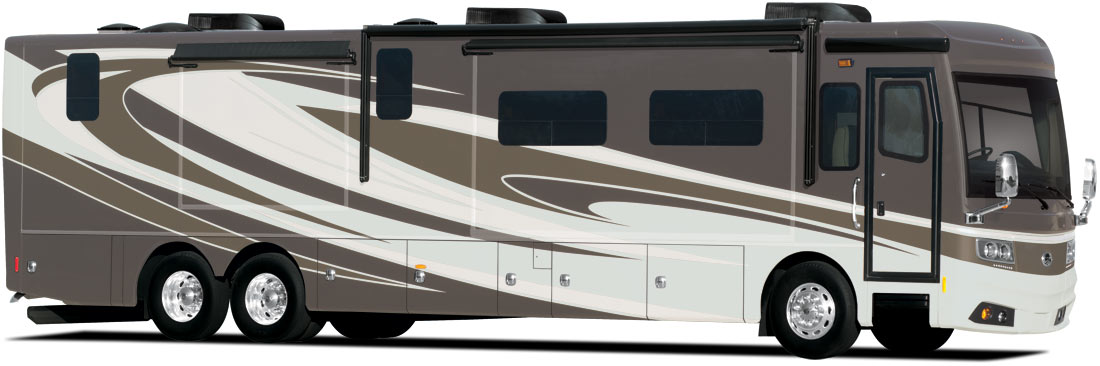

Desert Mirage
2016 diplomat
+
Manhattan Bronze II
2016 diplomat
Interior
Vapor Mist
+
2016 diplomat
Manhattan Bronze II
+
2016 diplomat
Wood Trim
+
2016 diplomat Glazed Dark Cherry 2016 diplomat Glazed Italian Sienna
Vapor Mist
Manhattan Bronze II
Wood Trim
2016 diplomat Glazed Dark Cherry 2016 diplomat Glazed Italian Sienna
The Roadmaster Chassis
Previous
Next
  • Roadmaster Chassis
    The superior performance of the Cummins ISL engine is an ideal match for the 2016 Diplomat. When you ride on the all-new Roadmaster Chassis, you get the full support and proven expertise of Freightliner Custom Chassis and its nationwide service network with over 400 locations, many of which include RV-dedicated Oasis locations. And with 24/7 Direct, 2016 owners receive direct access to factory technicians who can respond to all inquiries and technical issues.
  • 1. ELECTRO-COATED CHASSIS BRIDGE
    An electrically charged dipping process in which a corrosion barrier bonds to the steel, substantially increasing longevity, quality and reliability. And for good measure, we add undercoating to ensure all components are protected.
  • 2. I-BEAM STEEL STRUCTURE
    High-strength steel I-Beam is stronger than C-channel, and features enhanced cross-sections optimized for strength while reducing unnecessary weight.
  • 3. HUCK BOLTS
    Strongest, most reliable aerospace-grade fastener available.
  • 4. PASS-THROUGH STORAGE
    The all-new Roadmaster Chassis storage capacity is larger than before without compromising chassis strength.
  • 5. ALL-STEEL BASEMENT
    There’s no wood in this basement; lined with steel then electro-coated and undercoated, this chassis is professionally engineered and built to last.
  • 6. CUSTOM-TUNED SACHS® SHOCKS
    Tuned for the stable and responsive driving experience you expect from a Roadmaster, premium shocks increase comfort and safety.
  • 7. ZF® INDEPENDENT SUSPENSION
    Heavy-duty stabilizer bars and beams widen the effective load center on the axle, creating a higher resistance to vehicle roll, while improving responsiveness and handling for increased driver comfort.
  • 8. 60° WHEEL CUT
    The tightest turning radius of any motorhome chassis for the best maneuverability available.
  • 9. 150-gal DUAL FUEL FILL
    High-flow tank access from either side of the coach, mounted midship for superior load balancing.
  • 10. MICHELIN® TIRES
    Designed to provide excellent handling, comfort and durability.
  • 11. POWER GENERATOR SLIDE
    Providing easy access to the front chassis components and the powerful Cummins® Onan® generator.
  • 12. CUMMINS® ISL POWERED
    The B450 delivers 450 HP / 1,250 lb-ft from the ISL9 in rear-radiator form. It will fulfill every dream for power in your journey ahead.
  • 13. 160-amp ALTERNATOR
    Premium Delco-Remy high-output alternator to charge your systems faster.
  • 14. LARGER VOLUMETRIC AIRBAGS
    Part of the Neway® Air Suspension System, the larger volumetric airbags increase ride stability and comfort.
  • 15. EASY FILTER ACCESS
    Conveniently located, components that need scheduled maintenance are remote-mounted to be more easily accessible.
